Products > Laminating Machine > Pre-glued and Glueless Laminator > YFML-720/920/1200 Semi-auto Laminator

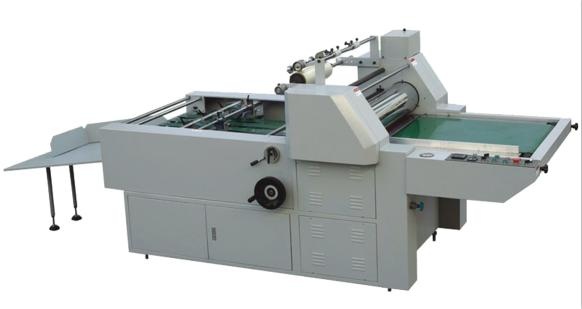

Product name : YFML-720/920/1200 Semi-auto Laminator
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:
YFML series of semi-auto laminating machine is a pre-glued film laminator which is designed and manufactured according to the market needs. This machine can finish both lamination and separation processes at a time. And it is also equipped with anti-curve device to prevent curvature of filmed paper sheets. The machine adopts pre-glued film for the lamination of packing bags, books, maps and drawings etc. The laminated products will be water-proof, durable, of clear picture and spatial effect.

APPLICATIONS:to suit pre-glued film lamination

1. CE certificate
2. Manual paper feeder
3. Paper regulating plate is adjustable upon paper size.
4. Heating method: Electrical tube heater makes temperature rise quickly, and the temperature is adjustable upon laminating requests.
5. Pressuring method: Automatic hydraulic system provides big pressure, and the pressure is adjustable upon laminating requests.
6. Anti-curvature device: The laminated paper goes through anti-curvature device and won’t curl after cutting.
7. Film cutter: If width of film roll is longer than paper’s width or length, then film cutter can cut the redundant film.
8. Perforating wheel perforates holes on film edge for automatic cutting to laminated paper.
9. Paper receiving table: Cut paper is sent to paper receiving table. Height of the table is adjustable.
10. The machine adopts one-piece structure design which makes the machine running stable and lengthens the machine’s lifetime.
11. Schneider frequency converter realizes infinitely variable speed, and makes the machine’s running easy.
12. 3 models with different sizes for choice as below:

Model YFML-720 YFML-920 YFML-1200
Max Paper Size 700*1040mm 880*1040mm 1170*1040mm
Laminating Temperature 60-130℃ 60-130℃ 60-130℃
Paper Thickness 80-500g/㎡ 80-500g/㎡ 80-500g/㎡
Laminating Speed 0-30 m/min 0-30 m/min 0-30 m/min
Gross Power 6.7kw 8.7kw 9.5kw
Total Weight 780kg 880kg 1000kg
Overall Dimensions 3950*1350*1700mm 3980*1550*1700mm 3980*1850*1700mm
