Products > Laminating Machine > Pre-glued and Glueless Laminator > SAFM-800 Fully Automatic Laminator

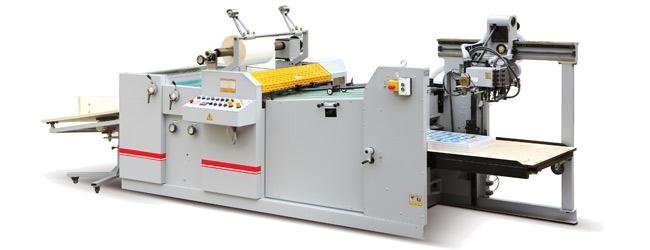

Product name : SAFM-800 Fully Automatic Laminator
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:
 SAFM serial fully automatic laminator is designed for thermal film lamination. This laminator is composed of feeding unit, laminating unit and paper separation unit and paper collection system. The electric and pneumatic system is equipped with programmable control (PLC). Heating roll adopts built-in oil heating system to precisionize laminating temperature. This machine centralizes the features of compact structure, high automatization, humanized operation design, and is an excellent choice for large and medium -size enterprises.

APPLICATIONS:It is used for the lamination pre-glued film and paper.



1. Automatic paper feeder adopts oil-free vacuum pump to feed paper automatically.
2. Automatic paper feeding system is equipped with no paper protector and paper break protector, which are controlled by photoelectric and mechanical systems. When no paper or paper break occurs, the machine will stop automatically for self-protection.
3. Conveying table is furnished with air aspirator and front lay etc. to guarantee paper conveying and overlap stable and regular.
4. High precision of chrome plated heating roller is equipped with oil circulation heating system, which has excellent performance to temperature control. The laminating temperature is adjustable upon applications.
5. Pneumatic pressuring system provides automatically steady pressure to guarantee good laminating quality. The pressure is adjustable upon applications.
6. Air expansion shaft releases film, and precisionizes film release, and also makes the loading and unloading of film roll more convenient.
7. The combination of air expansion shaft and braking device can adjust film release tension and speed.
8. Film cutter cuts film width to make it meet paper size. The cut film is left on the film release spindle.
9. Film perforating wheel perforates film edge for the automatic cut of laminated paper.
10. Anti-curvature device: when going through the anti-curvature device, the laminated paper shall be leveled at once and won’t curve again after cut.
11. Pneumatic cutting system realizes automatic paper cut.
12. Vibration receiving table: cut paper is sent to vibration receiving table, and will be stacked and tidied up automatically


Model SAFM-800
Max Paper Size 780*1040mm
Min Paper Size 350*300mmm
Paper Thickness 125-500g/㎡
Max Laminating Speed 40 m/min
Gross Power 22kw
Total Weight 1500kg
Overall Dimensions 4800*1650*1700mm
