Products > Paper Cutting Machine > Programmed Paper Cutting Machine > QZYK1300D Program Control Double Hydraulic Double Guide Paper Cutting Machine

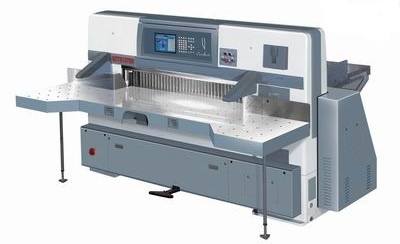

Product name : QZYK1300D Program Control Double Hydraulic Double Guide Paper Cutting Machine
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:
1. Usage: QZYK-D program Control Paper Cutting Machine is used to cut the printing paper of various kinds, paper products, plastic, thin film, leather, slice of non-ferrous metal, etc;
2. 10.4 inch computer keyboard: this series of program controlled computer adopts industrial human-machine interface, the main part of the computer is industrial chip from America. It has six languages, USB interface and hand wheel encode, which is easy to operate. It can self-diagnose the malfunction animation operation mode. The program memory can store 5000 programs, each of them can save 999 cutting'sdatum of different locations. Its storage hours are over 300,000 hours, which ensure the reliability of the performance. Paper delivering motor is Japan servo motor, its work speed is 6-18m/min. And the position accuracy can be 0.01 mm;
3. Double Hydraulic Device: the hydraulic system adopts the Germany advanced technology. Equipped with combined hydraulic valve, double hydraulic controlling structure, it approves hydraulic device greatly. The hydraulic device pass CE certificate;
4. Double Guide Device: the paper pusher adopts double imported linear guide and roller ball screw, which can prolong the machine use life, and can bear the high speed paper delivering.
5. Photo cell: it is equipped with a photo cell safety protection device.
6. Over load protection device: convenient knife changing device.
7. Worktable chrome treatment: the worktable and side board surface are all adopted chrome reatment to improve the precision and quality of the machine.
8. Air ball: air balls are installed in the worktable. The paper sending work will be easy and accurate.
9. Cutting controller: both of the user's hands operate the machine. It can cut paper in one time.
10. Electronic knife lock: when the machine is malfunction, the electronic knife lock will lock the knife,and the machine will stop cutting to protect safety.
11. Safety notice & Glass covers: the machine has passed CE certificate. All the safety notice and direction mark is used to cause the safety attention of the user, and do protection and maintenance in time.
12. Main electirc device are imported from Germany,French, Japan, etc.

Configuration:
1. Switzerland CEDES photo cell;
2. Italy hydralic pump;
3. Italy ATOS overflow valve, electric magnetic selector valve;
4. Taiwan Tatung motor;
5. Taiwan ruichang air pump.
Model QZYK1300D
Max. Cutting Width 1300mm
Max. Cutting Length 1350mm
Max. Cutting Height 165mm
Max. Clamping Pressure 40000N
Cutting Speed 45cycles/min.
Cutting Motor Power 4kw
Sending Paper Motor Power 0.75kw
Wind Pump Motor Power 0.75kw
Net Weight 4300kgs
External Dimension 2800*2820*1710mm
Packing Dimension 2870*1570*2000mm
