Products > Folder Gluer > > GTYZ Pre-folder Automactic Folder Gluer

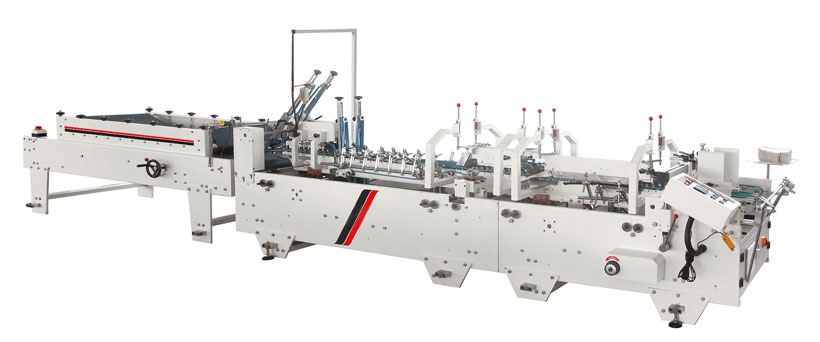

Product name : GTYZ Pre-folder Automactic Folder Gluer
 Enlarge Image                   Back
←[Previous Product]


Details:
Product Description:

GTYZ series are pre-fold automatic high speed automatic pasting machines.In the pre-folding part, the first fold and the third fold can be exchanged by 180 degree and 150 degree. The second fold and the fourth fold can be molded in 180 degree, the special design is also available. Main parts of this series
are adopted imported and domestic famous brand products,such as folding belt is Swiss powerful rubber flat,which is 10-20 times better than common belt.We also use imported electrical appliances. High speed, reasonable structure, convenient and flexible operating characteristics make the working more quickly and sately .It is suitable for making medicine box,food box,wine box,cosmetic box, wine box,CD box,document box and gift box etc .
Automatic Pre-Folder Folder Gluer (GTYZ-800/1200)Technical Parameter:
Model A max(mm) A min(mm) B max(mm) B min(mm) C min(mm) D min(mm) F min(mm)
GTYZ-800 700 70 600 110 8 70 51
GTYZ-1200 700 70 800 110 8 70 51

Machine Features:

1.Adopt the monomer structure,it is extremely convenient to move the machine whether it's in assemble or disassemble.
2.Adopt the integral sealed glue box,so as to make glue not easy to evaporate.And easily for moving it.
3.Adopt the two-way screw rod to make the adjusting fast and simply.
4.Adopt the synchronous belt and mast top to ensure the pasted box in perfect quality.
5.Pre-folded function can develop the production efficiency,forma complete set with the automation packing.
6.The pressing and delivering parts can move front and back to provide the convenience for making wine box and long box.
Linear velocity 0~220m/min
Suitable paper 220~800g/m² cardpaper and E wave corrugated paper
Paste box basic form Both side edges are folded , both sides are pre-folded, one-side edge pastes.
Feeding way Automatically and continuously feeding
Adhesive Solute type
Needed power AC380V  5 KW
Weight 2100KG
Overall Size 8200×1100/1300×1300mm
The scope of Count 0~999999
(automatic counter)
