Products > Folder Gluer > > GTHH Pre-Folder& Crash Lock Bottom Automatic Folder Gluer

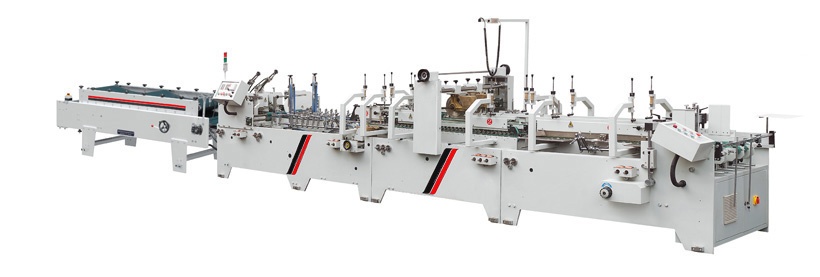

Product name : GTHH Pre-Folder& Crash Lock Bottom Automatic Folder Gluer
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:
Product Description:

GTHH series fully automatic pre-fold and crash lock bottom folder gluers are equipment with four-folded/edged-bottom,it is able to make 2-folding, 4-folding with bottom gluing.In the pre-folding part,the first fold and the third fold can be exchanged by 180 degree or 150 degree.The second fold and the fourth fold can be molded in 180 degree, and the special design is also available.Adopting imported electrical appliances and accessories.Before and after the single inverter separate operation.Very high speed,reasonable structure, convenient and flexible operating.It is suitable for the paste process,such as  edged-wine box,medicine box,CD box,cosmetic box and French fries box etc as well as pasting the paper box without-edged-bottom.

Fully Automatic Pre-Folder & Lock Bottom Folder Gluer (GTHH-800/900)Fully Automatic Pre-Folder & Lock Bottom Folder Gluer (GTHH-800/900)


Technical Parameter:
Type of box A max(mm) A min(mm) B max(mm) B min(mm) C min(mm) D min(mm) F min(mm)
GTHH-800
No-edged bottom box 700 70 800 110 8 70 51
edged bottom box 700 160 770 180 9 90 85
GTHH-900
No-edged bottom box 700 70 900 110 8 70 51
edged bottom box 700 160 870 180 9 90 85
Max linear velocity 250m/min
Suitable paper 220~800g/m² Cardpaper and E wave corrugated paper.
Paste box basic form One-side edge pastes, two-side edge pastes, base pastes both sides are folded, both sides are pre-folded.in order to convenient to paste
Way of folding in reverse First and third fold 90º, second  and fourth fold 180º
Feeding way Automatically and continuously feeding
Adhesive Solute type
Needed power 7.5KW 380V
Overall Size 9500x1200/1300x1350mm
