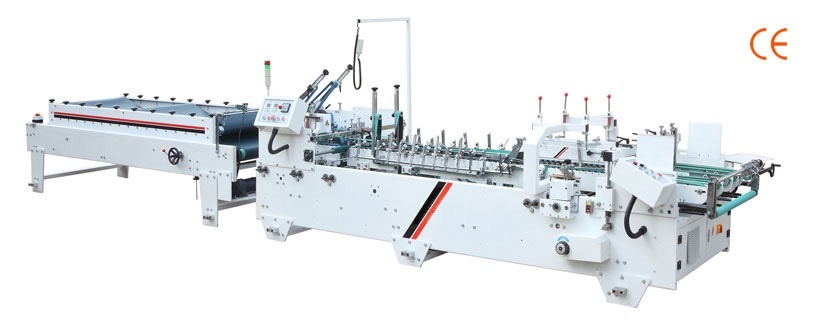

Product name : GTHB Fully Automatic Corrugated Paper Folder Gluer
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:

Product Description

GTHB series high speed automatic corrugated folder gluer are using imported electrical appliances and accessories,able to pre-press the paper and have a better pasting effect.High speed,flexible adjustment,
big width range let the machine can made more kinds boxes,specially for making boxes of flue F,E,C,B, like wine box,average speed 8000pcs/hour depends on different box size.This series widely applied to wine factory,carton box factory and other packing printing factories.
Fully Automatic Corrugated Paper Folder Gluer (GTHB-1050/1250/1450)

Technical Parameter:

Model A Max(mm) A Min(mm) B Max(mm) B Min(mm) C Min(mm) D Min(mm) F Min(mm)
GTHB-1050 700 70 1050 180 8 70 51
GTHB-1250 700 70 1250 180 8 70 51
GTHB-1450 700 70 1450 180 8 70 51

Linear velocity 0-220m/min
Suitable paper quality 220-800g/m2 cardpaper and F ,E,C,B corrugated paper
Paste box basic form One size edge pastes ,two side edge pastes
Feeding way Automatically and continuously feeding
Adhesive Solute type
Needed power AC220V  3.5 KW
Weight 2200KG
Overall Size 9300*1650/1850/2050x1300mm
The scope of Count 0-999999
(Automatic counter)
