Products > Laminating Machine > Pre-glued and Glueless Laminator > GTFM-720Y/900Y/1000Y/1200Y Hydraulic Film Laminator with Slitting

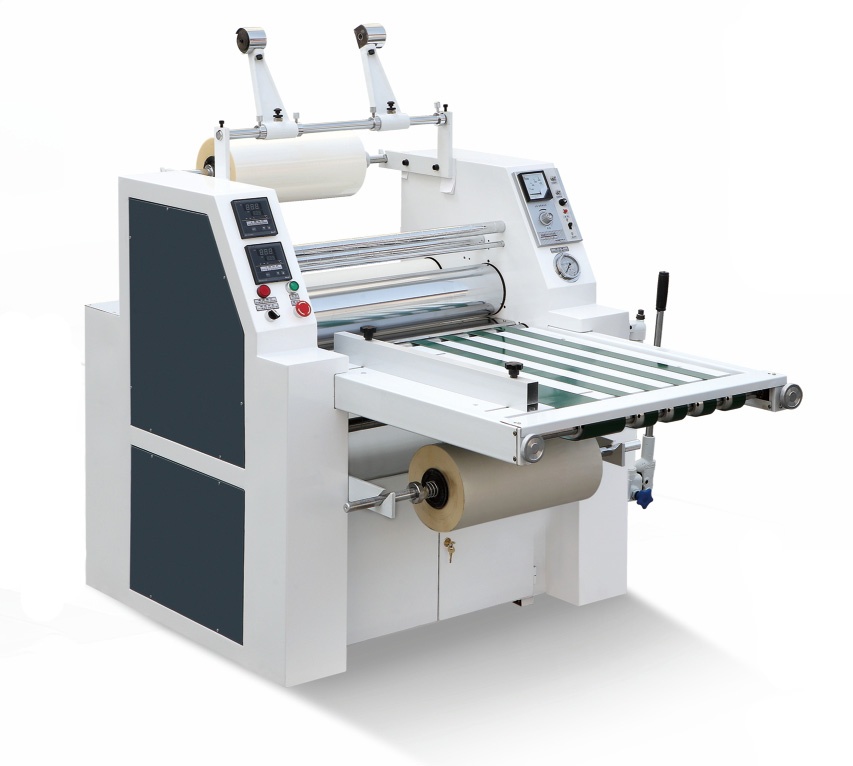

Product name : GTFM-720Y/900Y/1000Y/1200Y Hydraulic Film Laminator with Slitting
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:
This machine covers a small area, is operated conveniently, runs fast. It is equipped with automatic temperature-control and speed-regulation, automatic feeding. Several rolls or redundant rolls can be slit at one time, so this machine is regarded as a slitter.

The machine adopts pre-coated film as the material to handle both one-side and two-side lamination. It is widely used for lamination on the surface of window packing paper boxes, various books, maps, pictures, certificates, holographic cellophane etc. After the above products are laminated, they have the features of water-resistance, clear graphic arts and strong three-dimensional sense.

Model GTFM-720Y GTFM-900Y GTFM-1000Y GTFM-1200Y
Max laminating width 650mm 850mm 980mm 1150mm
Laminating speed 0-20m/min 0-20m/min 0-20m/min 0-20m/min
Laminating temperature 60-130 drgee 60-130 drgee 60-130 drgee 60-130 drgee
Motor power 0.55KW 0.75KW 0.75KW 1.1KW
Power of electric heater 2.4KW 3.6KW 4.8KW 5.4KW
Voltage 380V 380V 380V 380V
Measurement 1150*1100*1400mm 1350*1100*1400mm 1550*1250*1450mm 1750*1250*1450mm
Weight 380KGS 500KGS 580KGS 650KGS
Pressure 0-4Mpa 0-5Mpa 0-10Mpa 0-10Mpa
